उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| श्रेणी: | 6000 श्रृंखला | गुस्सा: | T3-T8 |
|---|---|---|---|
| मिश्र धातु: | 6063 | सतह समापन: | एनोडिक ऑक्सीकरण |
| प्रोफ़ाइल मोटाई: | 0.8 - 5.0 मिमी | एनोडाइज्ड मोटाई: | 8 - 25UM |
| पाउडर लेपित मोटाई: | 60-120UM | लंबाई: | 3 मीटर - 6 मी |
| बहिष्कार आकार: | 400*150 मिमी, φ360 | तन्यता ताकत: | ≥ 160MPA (T5), of 205mpa (T6) |
| नम्य होने की क्षमता: | ≥ 110MPA (T5), ≥ 180MPA (T6) | बढ़ाव: | ≥ 8% |
| उत्पादन क्षमता: | 5000 मीट्रिक टन/माह | मूक: | 500kgs |
| एक्सट्रूज़न मशीन क्षमता: | 6800 टन | ||
| प्रमुखता देना: | Custom Polished Aluminum Extrusion Profile,Bright Anodized Aluminum Profile,Shower Room Aluminum Extruded Profile |
||

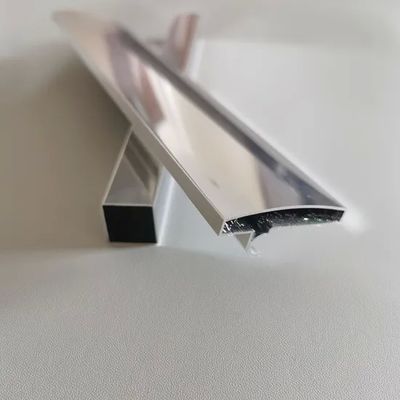

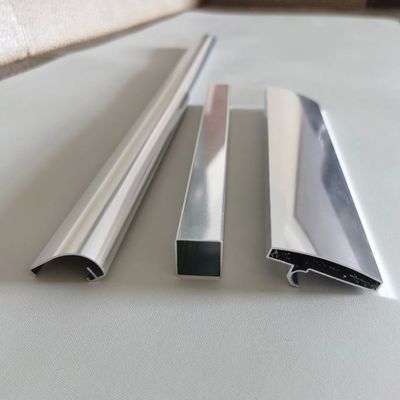

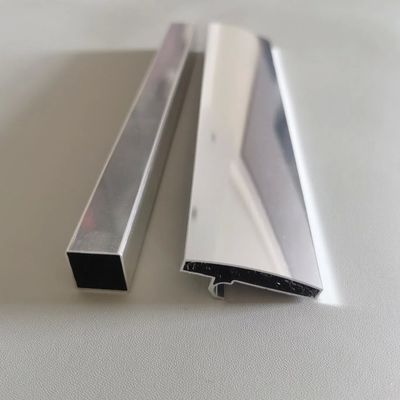

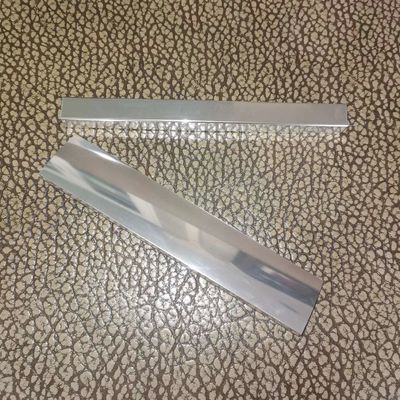

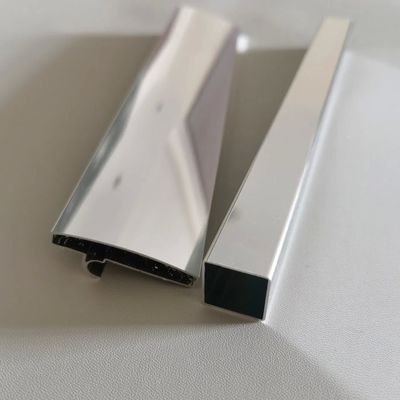

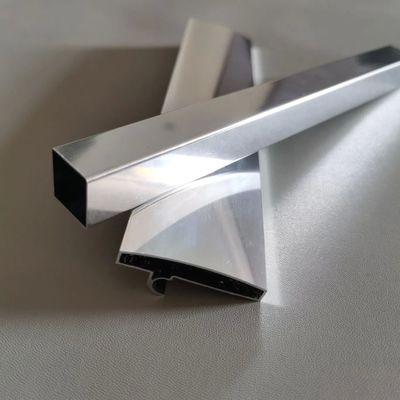

| Item | Aluminum Bright Shiny Polished Industrial Extrusion Profiles |
|---|---|
| Material | Aluminium 6000 series alloy: 6063, 6005, 6061 |
| Temper | T4, T5, T6 |
| Size | 3m - 6m per piece (custom lengths available) |
| Shape | Round, square, flat, hollow, oval, triangle, U-profile, L-profile, T-profile (custom shapes available) |
| Thickness | 0.8 - 5.0mm |
| Application | Elevator components, shower rooms, and industrial applications |
| Surface Treatment | Mill-finish, anodized, powder coated, electrophoresis, brushed |
|---|---|
| Anodized Colors | Silver, black, champagne, bronze, gold (custom colors available) |
| Anodized Thickness | 8 - 25μm |
| Electrophoresis Colors | Silver, black, champagne, bronze, gold (custom colors available) |
| Powder Coated Colors | Custom colors available |
| Powder Coated Thickness | 60 - 120μm |
| Color Stability | 10-20 years for indoor applications |
| Bundles Packing | EP foam protection with waterproof craft paper wrapping |
|---|---|
| Carton Packing | Individual plastic bags with multiple units per carton |
| Wood Pallet Packing | Bundles or cartons loaded on wooden pallets |
| Custom Packing | Special packing requirements accommodated |
| MOQ | 500kg per item (13-15 tons for 20GP container; 25 tons for 40HQ) |
|---|---|
| OEM Service | Accepts customer drawings, samples, or design specifications |
| Production Capacity | 5,000 metric tons monthly |
| Deep Processing | CNC, drilling, milling, cutting, bending, tapping, welding, assembling, punching |
| Brand Name | HENTEC |
| Certifications | ISO9001-2008, ISO14001, SGS |
| Delivery Time | 12-18 days for die development and samples; 20-30 days for mass production after sample approval |
| Payment Terms | T/T, L/C |
| FOB Port | Shanghai |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 6063 | T5 | ≥160MPa | ≥110MPa | ≥8% |
| 6063 | T6 | ≥205MPa | ≥180MPa | ≥8% |
| 6061 | T6 | ≥265MPa | ≥245MPa | ≥8% |
